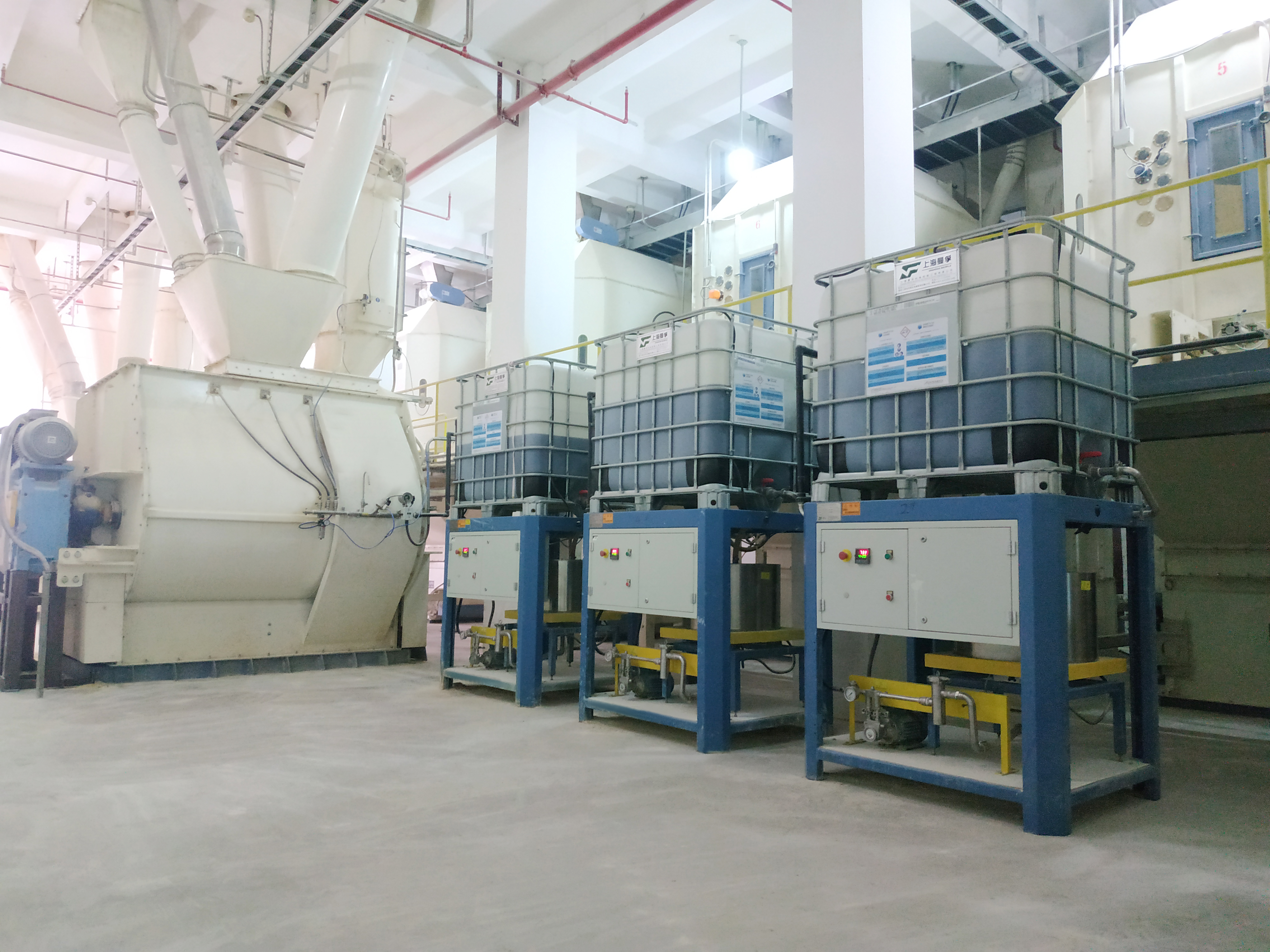

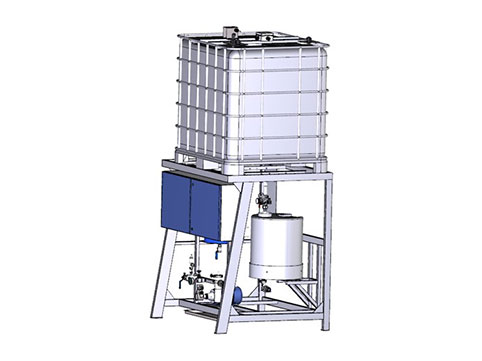

BATCH LIQUID DOSING

It is used to add the liquid ingredient into feed mixer batch by batch, such as methionine, antimould, choline chloride, acidifier, emulsifier…


The system uses a load cell weigher for weighing and batching feed ingredients during production. By “Loss-in-Weigh” methodology, the dosing pump will draw a precise amount of liquids from the weigher hopper to be sprayed onto the feed in mixer.


The dosing accuracy can be achieved around +/- 1% error tolerance against set point. As an example: inclusion rate 1kg/ton, the error is +/- 10g.


The system is controlled automatically by PLC and operated by PC SCADA or touchscreen panel with real time graphic flow. System provides trend curves and comprehensive usage reports exportable to USB driver. It is an open system which is ready for linking with feed milling automation system.

Administrate wide range of liquids at variable inclusions
catalogue and technical details
download ((PDF-1.03MB))
